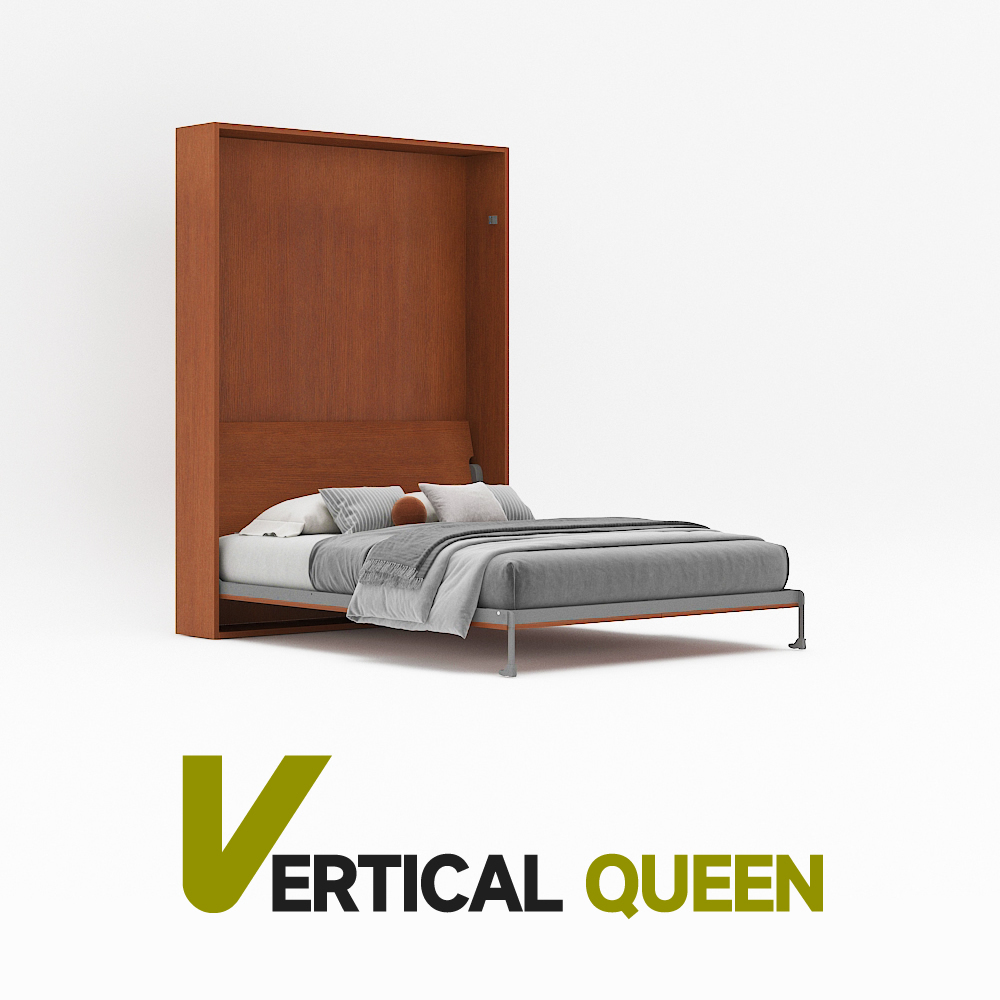

Vertical Wall Bed Mechanism | Queen Size

No.: XV150
**** It is MECHANISM KIT ONLY, NOT including the cabinet and mattress ****

A wall bed mechanism with a metal welded frame is used for a foldable bed that can be stored vertically/horizontally against the wall when not in use. It is designed to save space and provide a comfortable sleeping area.

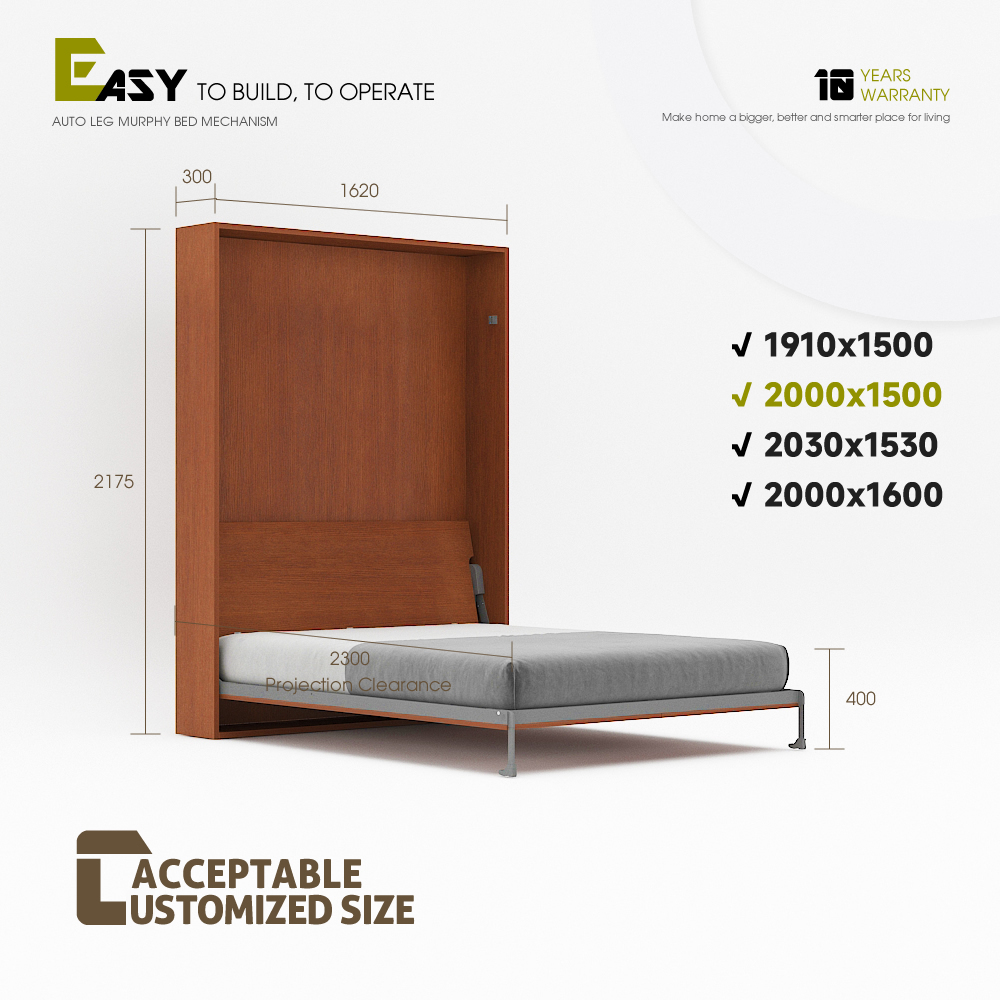

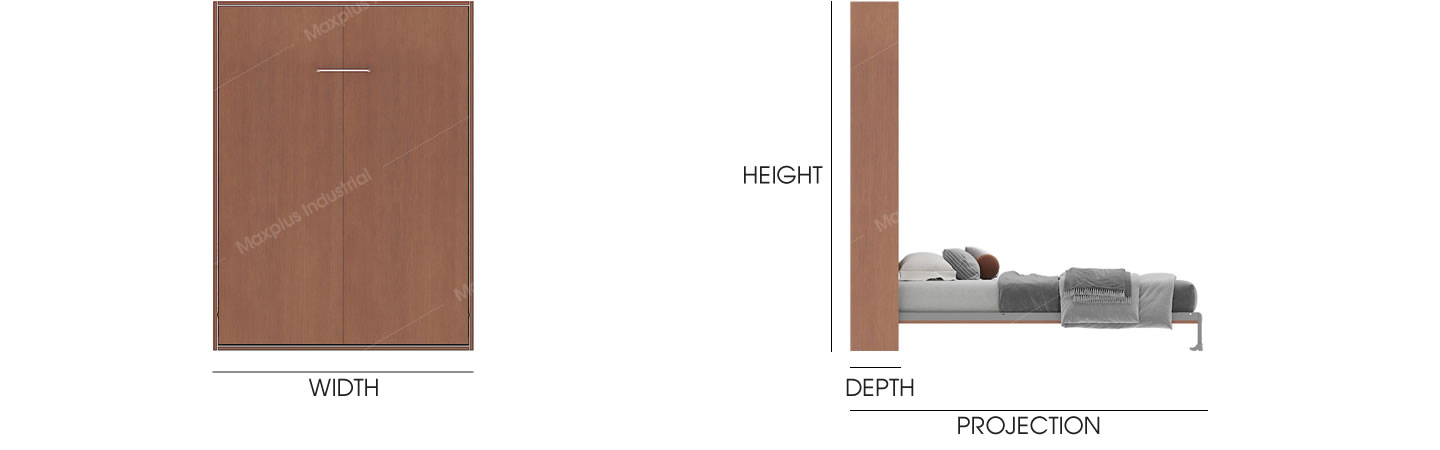

>> Bed Measurement
W1620 x H2175 x D300 mm
>> Required Space Clearance
W1620 x H2175 x D2300 (projection) mm
>> Mattress Lodge
2005 x 1506 mm
>> Normal Mattress
2000 x 1500 mm
>> Weight Load Capacity
500 kg
Available Mechanism Size:
2000x1500 mm
1910x1500 mm
2030x1530 mm
2000x1600 mm
2000x1800 mm
Customized
  • Queen wall bed mechanism kit easy-lift Murphy bed lifting mechanism
  • Queen wall bed mechanism kit easy-lift Murphy bed lifting mechanism
  • Queen wall bed mechanism kit easy-lift Murphy bed lifting mechanism
  • Queen wall bed mechanism kit easy-lift Murphy bed lifting mechanism
SPECIFICATION

Attributes:

Model No. XV150 Color Grey
Brand Maxplus Surface Finish Powder Coated
Type Space-saving furniture MOQ. 12 sets
Folded Yes Sample Available
Warranty 10 Years Packing Plastic Film Wrapping
Function Multi-functional Mattress Size 2000x1500 mm
Material Metal OEM/ODM Acceptable


Packing & Delivery:

Packing & Gross Weight Plastic Film Wrapping
2120x1580x70 mm; 35kg
Quantity (sets) <120 sets >120 sets
Lead Time 25 days  to be negotiated

Container Loading Capacity 20ft 130 sets 40HQ 310 sets


Sample & Customization:

Available Sample Customization
Maximum Order: 2 sets Customized Logo Customized Packing
Sample Price Regular Price Min. Order:  120 sets Min. Order 120 sets


Technical Info:

Article Code Mattress Size Bed Measurement
Width Height Depth Projection
XV150 Queen 2000x1500 1620 2175 300 2300
Available Customized Size
XV191120 Queen 1910x1500 1620 2085 300 2210
XV8060 Queen 2030x1530 1650 2205 300 2330
XV200160 Euro Queen 2000x1600 1720 2175 300 2300
XV200180 King 2000x1800 1920 2175 300 2300



The framed wall bed mechanism is the highest-quality, multi-functional solution for space-saving on the market. It's one of the most
popular murphy bed kit.

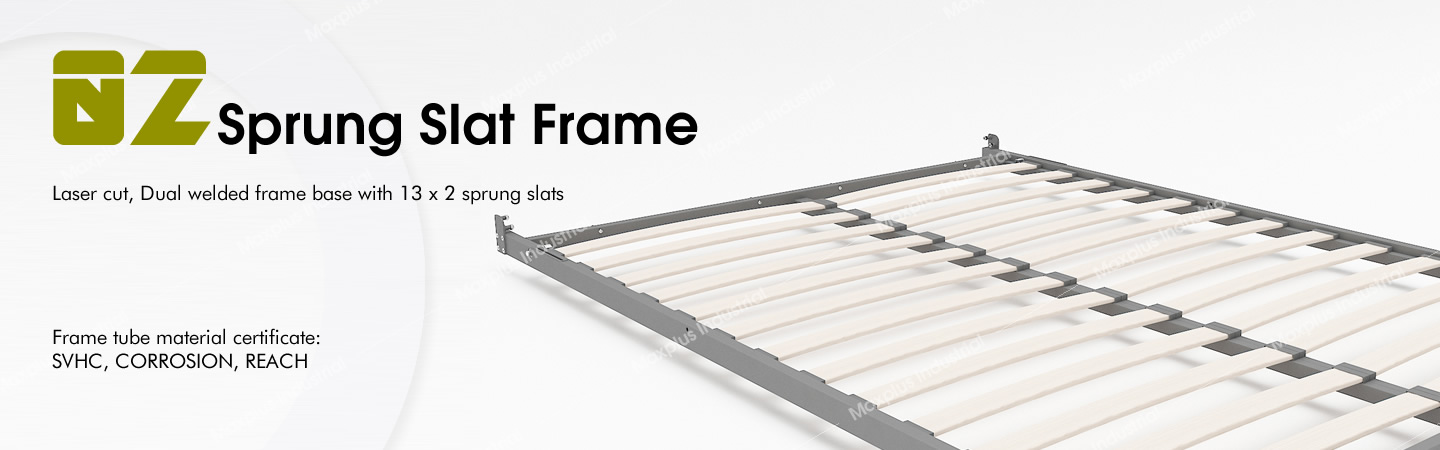

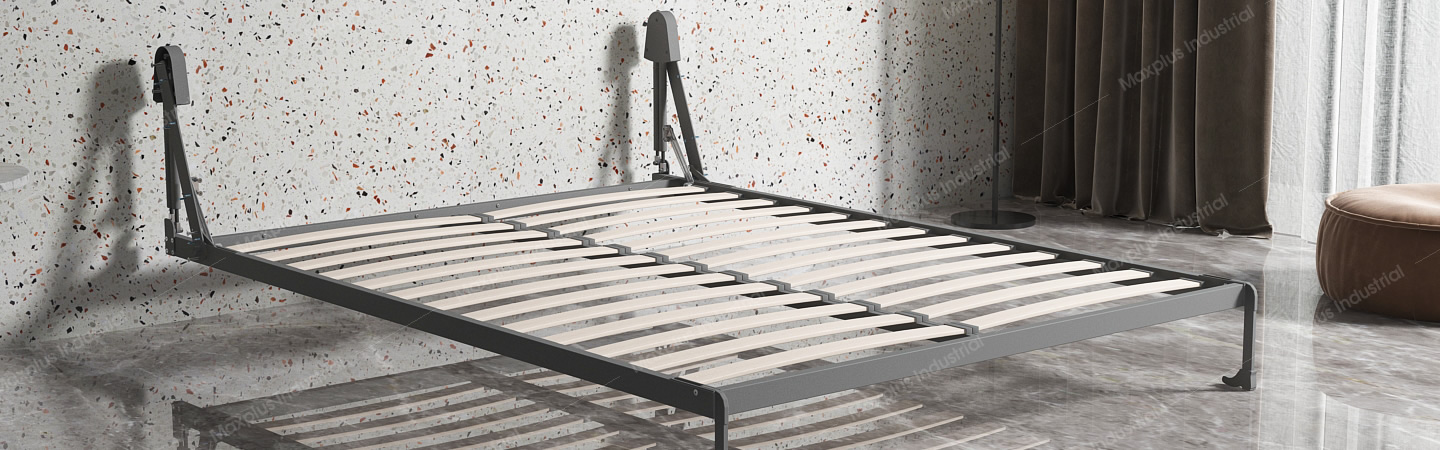

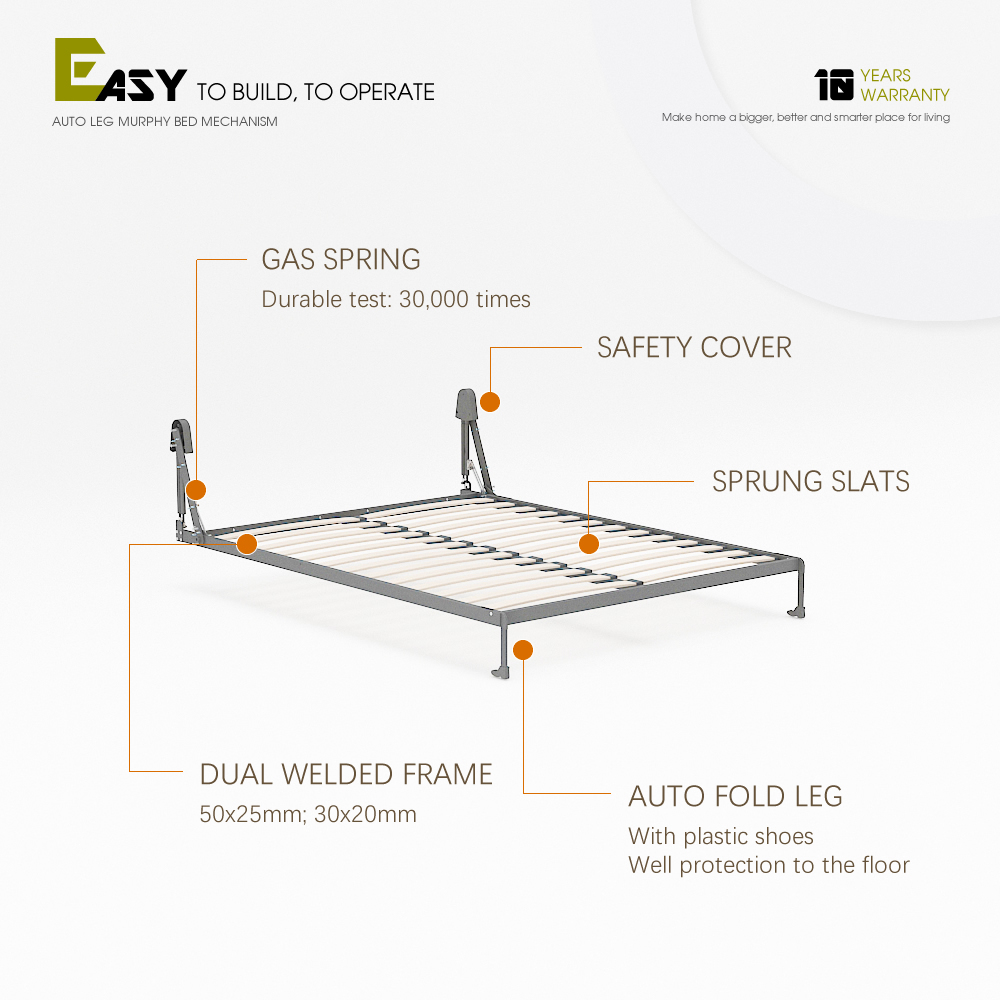

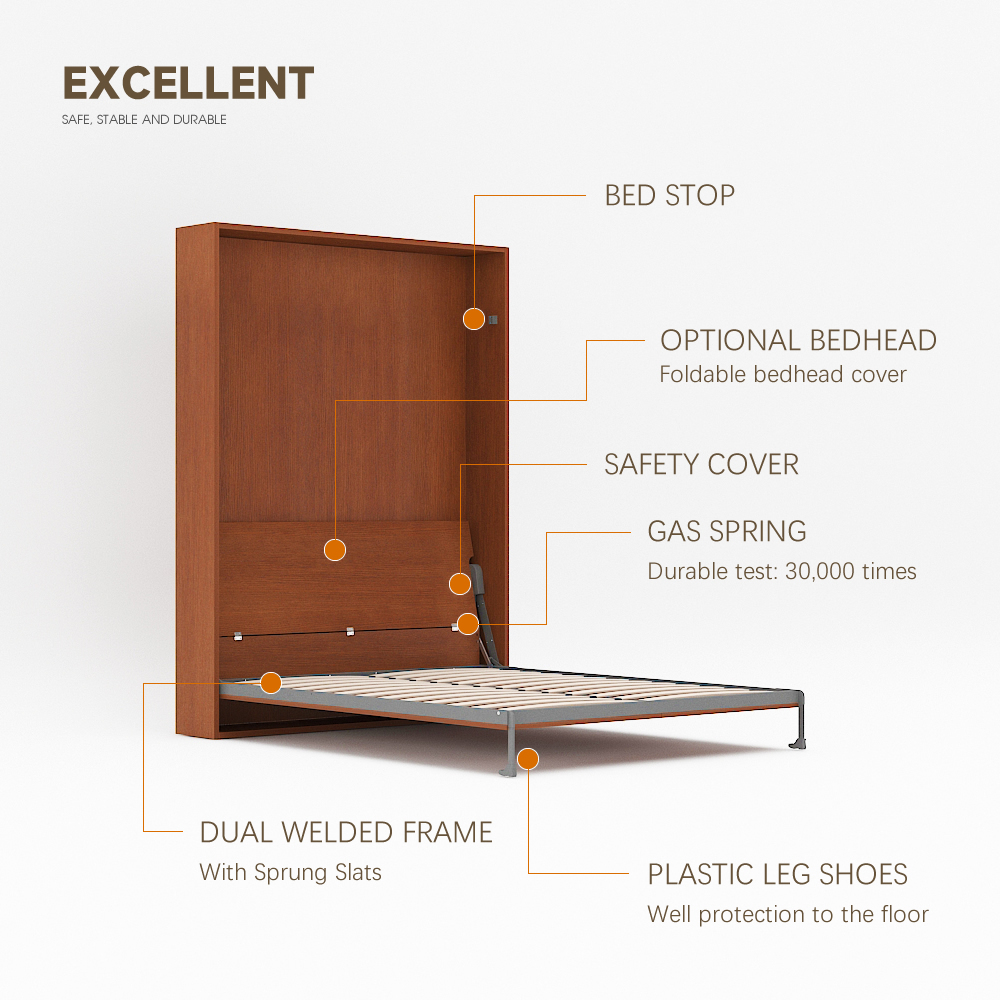

---- Welded frame with sprung slats, weight load capacity: 500 kg

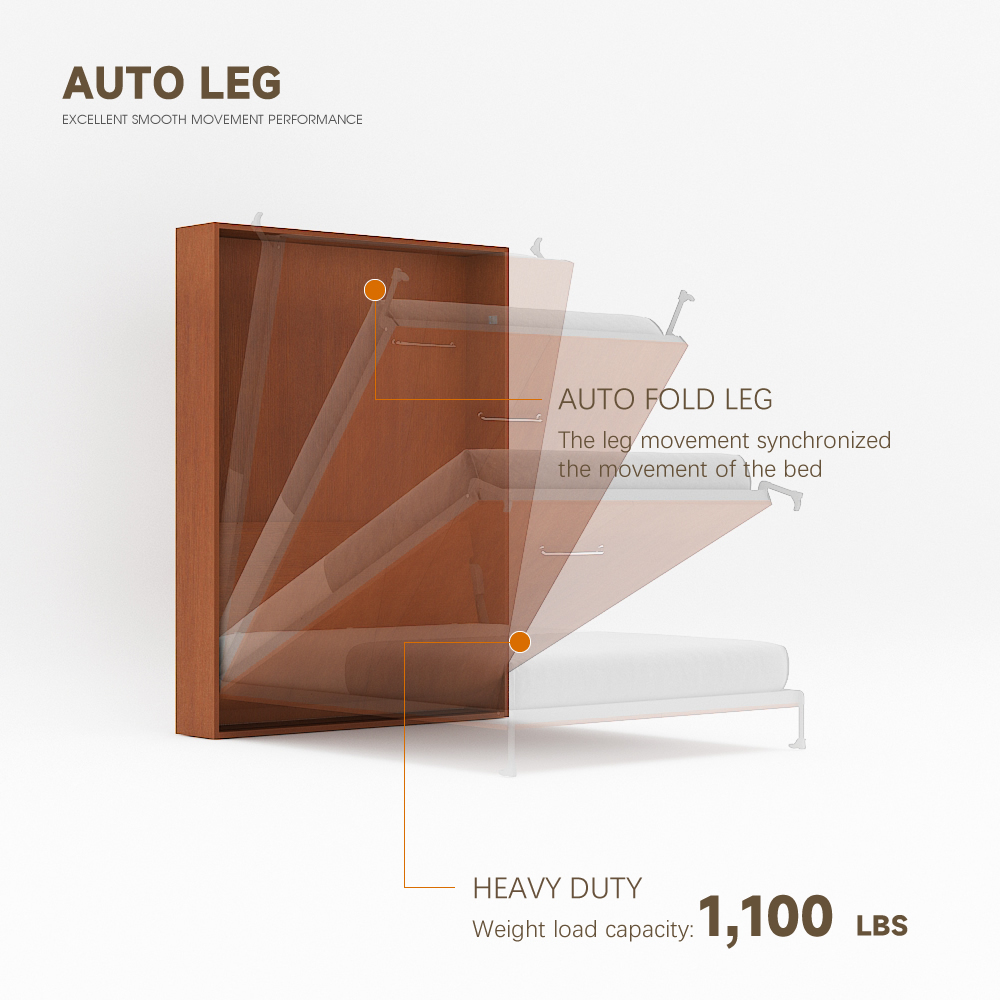

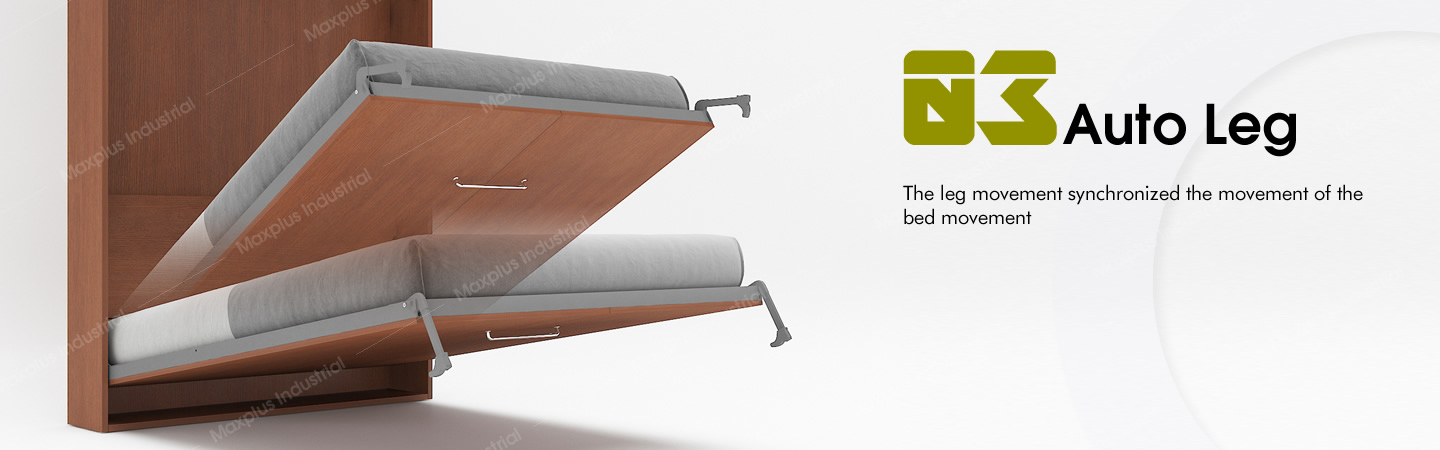

---- Leg movement synchronized the movement of the bed
---- Smooth self-fold down after opening over 30 degrees
---- Easy operation, safe, stable and durable
---- Customized sizes are available





Monthly Production Capacity:

Wall Bed Frame Mechanism 3,000 sets



Advantages and Benefits:
Excel and attractive wall bed mechanisms for those who wants a multipurpose space—either either sleep, works or more space to use in home.
When space is at a premium, being able to use one room for two purposes can be a major benefit. In essence, you have two or more rooms for the price of one.



Configuration:
**** It is MECHANISM KIT ONLY, NOT including the cabinet and mattress ****
